10kw 12kw Grid Tie 3 Phase On Grid Solar Inverter MOD 12KTL3-X With CE Certificate

Name: 10kw 12kw Grid Tie 3 Phase On Grid Solar Inverter MOD 12KTL3X With CE Certificate
Brand: Growatt
Price: 628.00 USD

China 10kw 12kw Grid Tie 3 Phase On Grid Solar Inverter MOD 12KTL3-X With CE Certificate wholesale

Place of Origin : Zhejiang, China

Brand Name : Growatt

Model Number : MOD3K-15KTL3-X, MOD10K-15KTL3-X

Packaging Details : cartons and outside master carton

Supply Ability : 100 Piece/Pieces per Week

Price : $628.00/pieces 1-19 pieces

Input Voltage : 140VDC ~ 1000VDC

Output Voltage : 220/380V 230/400V

Output Current : 13A

Output Frequency : 50Hz / 60Hz, 50/60Hz

Output Type : Single, Triple

Size : 425/387/178mm

Type : DC/AC Inverters

Inverter Efficiency : 98.4%

Certificate : CE, IEC62109, G83, VDEO126-1-1, G59, AS 4777

Warranty : 10 years

Weight : 18kg

Application : Solar Power System

Protection : IP65

MPPTEfficiency : 99.5%

PV voltage range : 140VDC ~ 1000VDC

Max. efficiency : 98.4%

Rated power : 10KW-15KW

Operating Temperature Range : -25°C...+60°C

Port : shenzhen

Contact Now

Products Description

Growatt Solar Inverter

GLOBAL LEADING DISTRIBUTED ENERGY SOLUTION PROVIDER

Residential Inverter Supplier GLOBAL NO.1

PV Inverter Supplier GLOBAL ТОP3

User Side Energy Storage Inverter Supplier GLOBAL NO.1

10kw 12kw Grid Tie 3 Phase On Grid Solar Inverter MOD 12KTL3-X With CE Certificate

MOD 3-15KTL3-X/XH

Residential PV Inverter

3-15kW 2 MPPTs Three Phase

* Max. efficiency 98.6%
* OLED and Touch button
* Type II SPD on DC and AC side
* String Monitoring
* AFCI optional

The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.

The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.

Datasheet

MOD

3000
TL3-X

MOD

5000
TL3-X

MOD

7000
TL3-X

MOD

9000
TL3-X

MOD

10000
TL3-X

MOD

13000
TL3-X

MOD

15000
TL3-X

Input data (DC)

Max. recommended PV power (for module STC)

4500W

7500W

10500W

13500W

15000W

19500W

22500W

Max. DC voltage

1100V

Start voltage

160V

200V

Nominal voltage

580V

MPPT voltage range

140V-1000V

Output data (AC)

AC nominal power

3000W

5000W

7000W

9000W

10000W

13000W

15000W

Max. AC apparent power

3300W

5500W

7700W

9900W

11000W

14300W

16500W

Nominal AC voltage(range*)

220V/380V, 230V/400V (340-440V)

AC grid frequency(range*)

50/60 Hz (45-55Hz/55-65 Hz)

Max. output current

5.0A

8.3A

11.7A

15.0A

16.7A

21.7A

25.0A

Adjustable power factor

0.8leading…0.8lagging

Efficiency

MAX. efficiency

98.3%

98.6%

European efficiency

97.5%

98.1%

98.2%

MPPT efficiency

99.9%

General data

Dimensions (W / H / D)

425/387/147mm

425/387/178mm

Weight

12.5kg

14kg

16kg

Operating temperature range

–25°C ... +60°C

Protection degree

IP66

Relative humidity

0~100%

Altitude

4000m

Display

OLED+LED/WIFI+APP

Inverter power: 3000W, 4000W, 5000W, 6000W, 7000W, 8000W, 9000W, 10KW, 11KW, 12KW, 13KW, 15KW. For more models, please contact customer service.

Size and weight
Model	Height (H)	Width (W)	Depth (D)	Weight
MOD 3-6KTL3-X	387mm	425mm	147mm	12.5kg
MOD 7-11KTL3-X	387mm	425mm	178mm	14kg
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU	387mm	425mm	178mm	16.0kg

The appearance instructions are as follows:
No.	Name	No.	Name
A	DC switch	E	AC terminal
B	PV terminal	F	LED indicator
C	RS485 port	G	LCD screen
D	USB port	H	Touch button

Product Details

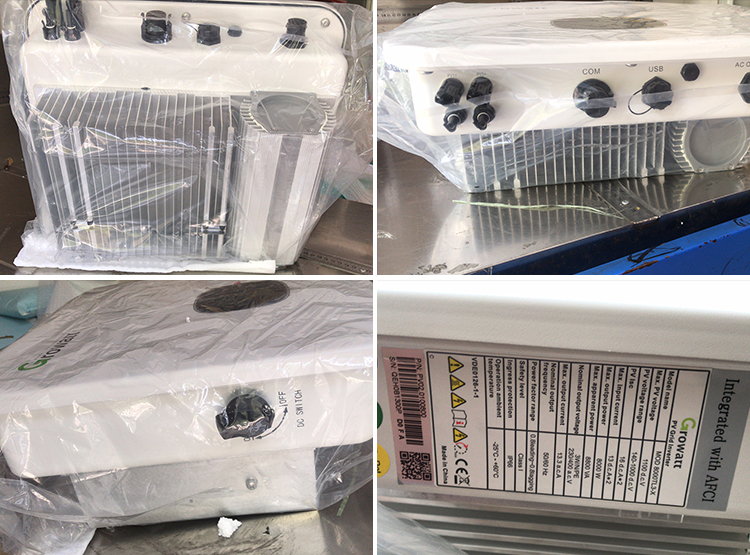

Product packaging
